Project – Small Piezoelectric Buzzer – 5V Active Buzzer

Discount per Quantity

Quantity	5 +
Discount	5%
Price	₹28.50

... people are viewing this right now

Guaranteed Safe Checkout

Original price was: ₹75.00.Current price is: ₹30.00.

In stock

Description Additional information

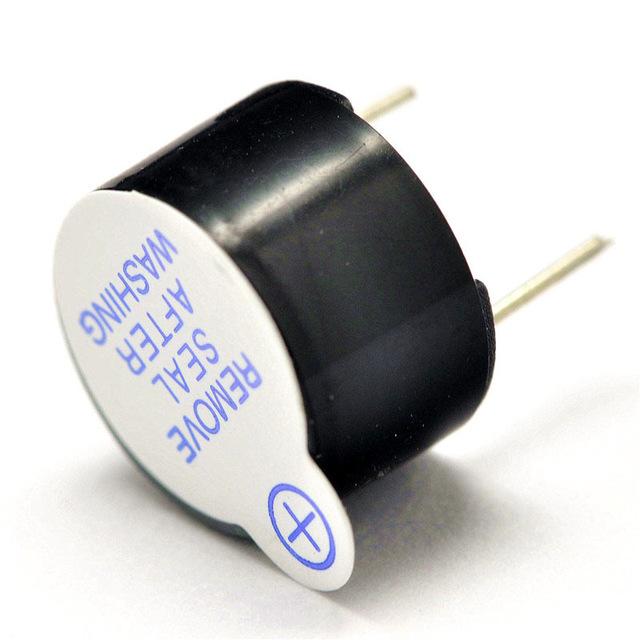

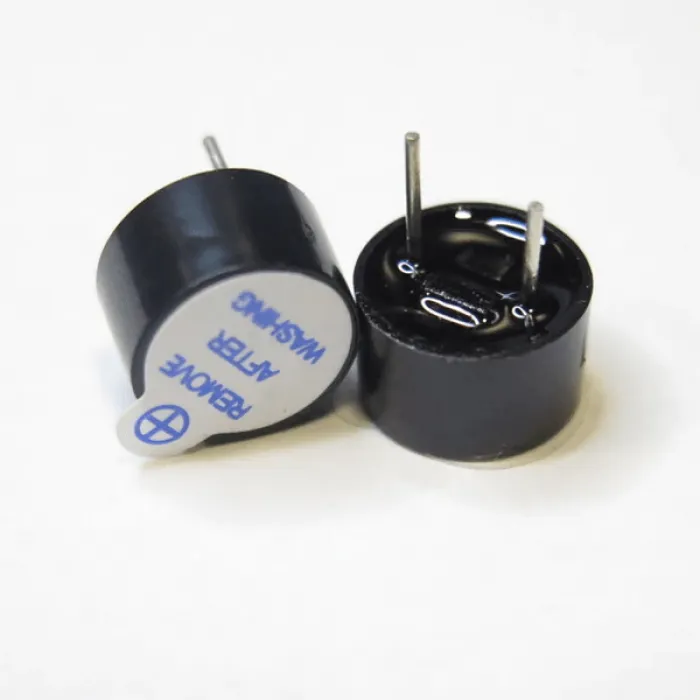

The Piezoelectric Buzzer is a small and efficient component to add to your system or project if you want to produce any sound feedback or sound an alarm. Its two-pin compact structure allows it to be easily used with a breadboard, perf-board, or even PCBs. This piezoelectric buzzer has 23mm diameter and 30mm spaced mount holes. It produces a 3.3kHz tone at an 85dB sound level when activated drawing a current less than 15mA. Supplied with a 100mm lead, it is designed for a 3 – 20V power supply but it is advisable to use a stable supply in this range. It is very popular among hobbyists and portable electronics due to its small size and easy to use.

Specifications

Operation Voltage: 5V DC
Frequency: 3,300Hz
Current: <15mA
SPL: 85dBA/10cm
Color: Black
Operating Temperature: – 20° to +60°C
Polarity: Positive Pin marked on the surface
Number of pins: 2
