Project – D882 NPN General Purpose Transistor
₹18.00 – ₹20.00Project – S8050 NPN Transistor
60%
₹49.00 Original price was: ₹49.00.₹20.00Current price is: ₹20.00.
In Stock
Discount per Quantity
| Quantity | 5 - 9 | 10 + |
|---|---|---|
| Discount | 5% | 10% |
| Price | ₹19.00 | ₹18.00 |
Add to Wishlist
Add to Wishlist
Report Abuse
Description

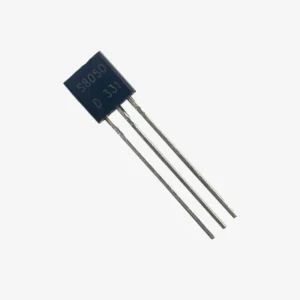

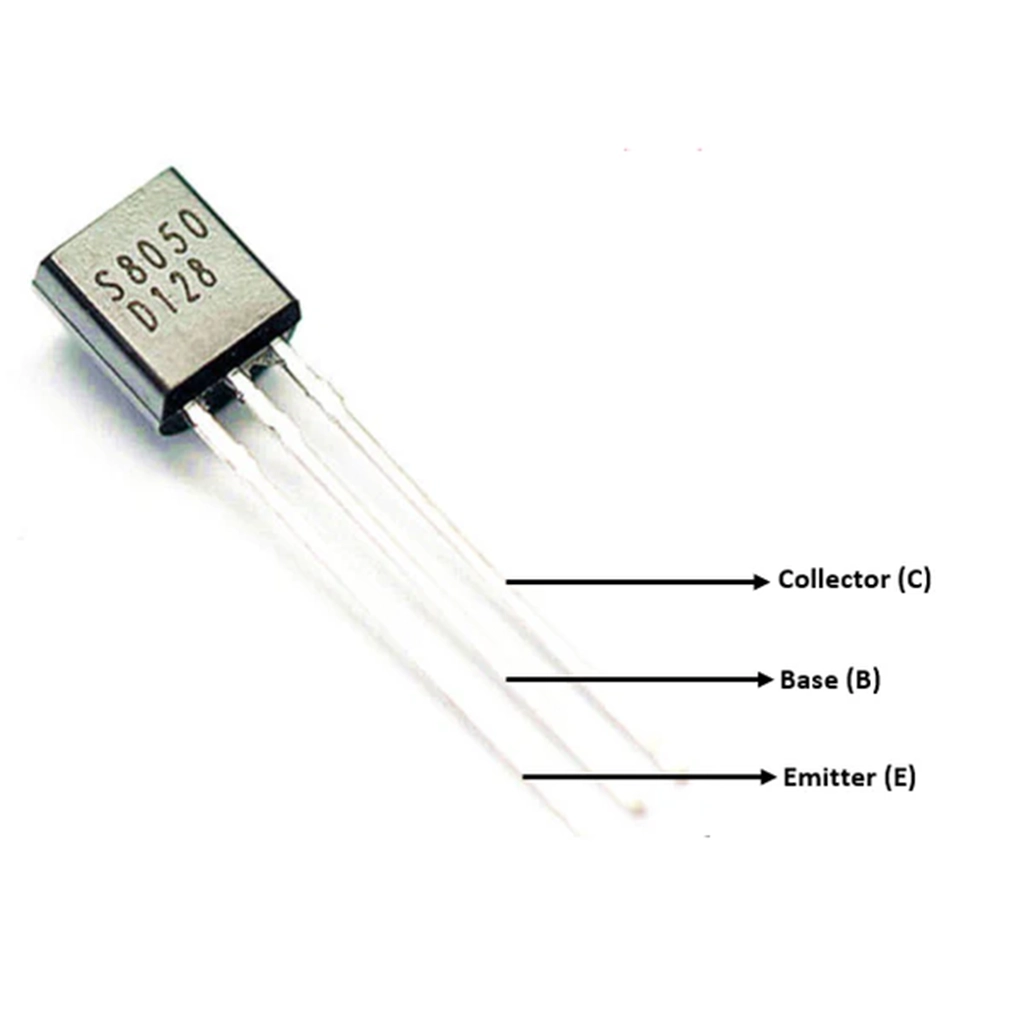

The S8050 transistor is an NPN transistor with excellent maximum gain capability of 400 but normal gain is around 110 so that you can use it in amplifier application. It can have a maximum collector current flow of 700mA and maximum collector power dissipation of 2W. The base current should be limited to 5mA for safe working of the transistor.
S8050 Transistor Specifications
- NPN Transistor, Small Signal Transistor
- Maximum Power: 2 Watts
- Maximum DC Current Gain (hFE) is 400
- Continuous Collector current (IC) is 700mA
- Base- Emitter Voltage (VBE) is 5V
- Collector-Emitter Voltage (VCE) is 20V
- Collector-Base Voltage (VCB) is 30V
- Available in To-92 Package
