Project – MQ2 Gas Sensor Module | Smoke & Gas Detection for Arduino & IoT Projects (Pack of 1)
34%
Key Features:
✔ Multi-Gas Detection – Detects LPG, methane, propane, smoke, alcohol and hydrogen.
✔ High Sensitivity & Fast Response – Provides accurate gas concentration readings.
✔ Analog & Digital Output – Easily interfaces with Arduino, Raspberry Pi and other microcontrollers.
✔ Adjustable Sensitivity – Built-in potentiometer for fine-tuning gas detection levels.
✔ Compact & Durable Design – Ensures long-lasting performance in various environments.
₹225.00 Original price was: ₹225.00.₹150.00Current price is: ₹150.00.
In Stock
Discount per Quantity
| Quantity | 5 - 9 | 10 + |
|---|---|---|
| Discount | 5% | 10% |
| Price | ₹142.50 | ₹135.00 |
Add to Wishlist
Add to Wishlist
Report Abuse
Description
Project – MQ2 Gas Sensor Module | Smoke & Gas Detection for Arduino & IoT Projects
MQ2 Gas sensor is a Metal Oxide Semiconductor (MOS) type Gas Sensor mainly used to detect gases like Methane, Butane, LPG, Smoke, etc. It is also known as Chemiresistors as the gas detection is based on the change of resistance of the sensing material when the Gas comes in to contact. If you want to measure a different type of Gas you can check these Gas Sensors.
MQ2 Gas sensor module works on 5V DC and uses around 800mW. It can detect LPG, Smoke, Alcohol, Propane, Hydrogen, Methane and Carbon Monoxide concentrations in a range of 200 to 10000 ppm.

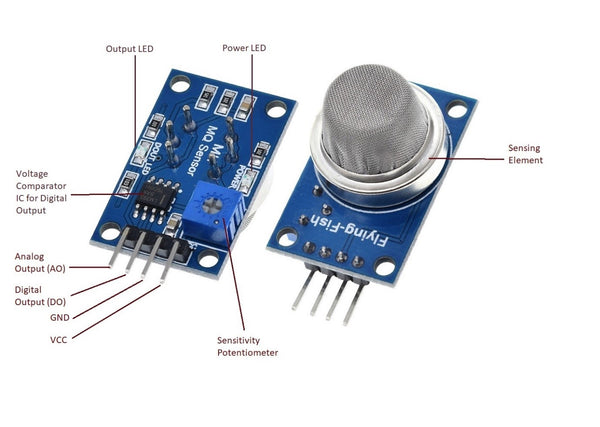

MQ2 Gas Sensor Features & Specifications
- Operating Voltage is +5V
- Analog output voltage: 0V to 5V
- Digital Output Voltage: 0V or 5V (TTL Logic)
- Preheat duration 20 seconds
- Can be used as a Digital or analog sensor
- The Sensitivity of Digital pin can be varied using the potentiometer
Product Description
To use the MQ2 gas sensor module, you need to power the device with 5V supply and the Power LED will start to glow. You should give it some preheating time before start reading the output. While measuring the gas present, the Output LED will glow in a specific concentration of the gas. You can change it by using the potentiometer. Else you can also use the Analog Output to see how your program reacts to different concentration of gases present.
