₹135.00 – ₹150.00Project – LM7905 – 5V Negative Voltage Regulator (Pack of 1)
36%
Specifications
- 5V Negative Voltage Regulator
- Output Voltage: -5V
- Output Current: 1.5A
- Minimum Input Voltage is 7V
- Maximum Input Voltage is 25V
- Operating current(IQ) is 5mA
- Internal Thermal Overload and Short circuit current limiting protection is available.
- Junction Temperature maximum 125 degree Celsius
- Available in TO-220 Power Package
₹39.00 Original price was: ₹39.00.₹25.00Current price is: ₹25.00.
In Stock
Discount per Quantity
| Quantity | 5 - 9 | 10 + |
|---|---|---|
| Discount | 5% | 10% |
| Price | ₹23.75 | ₹22.50 |
Add to Wishlist
Add to Wishlist
Report Abuse
Description

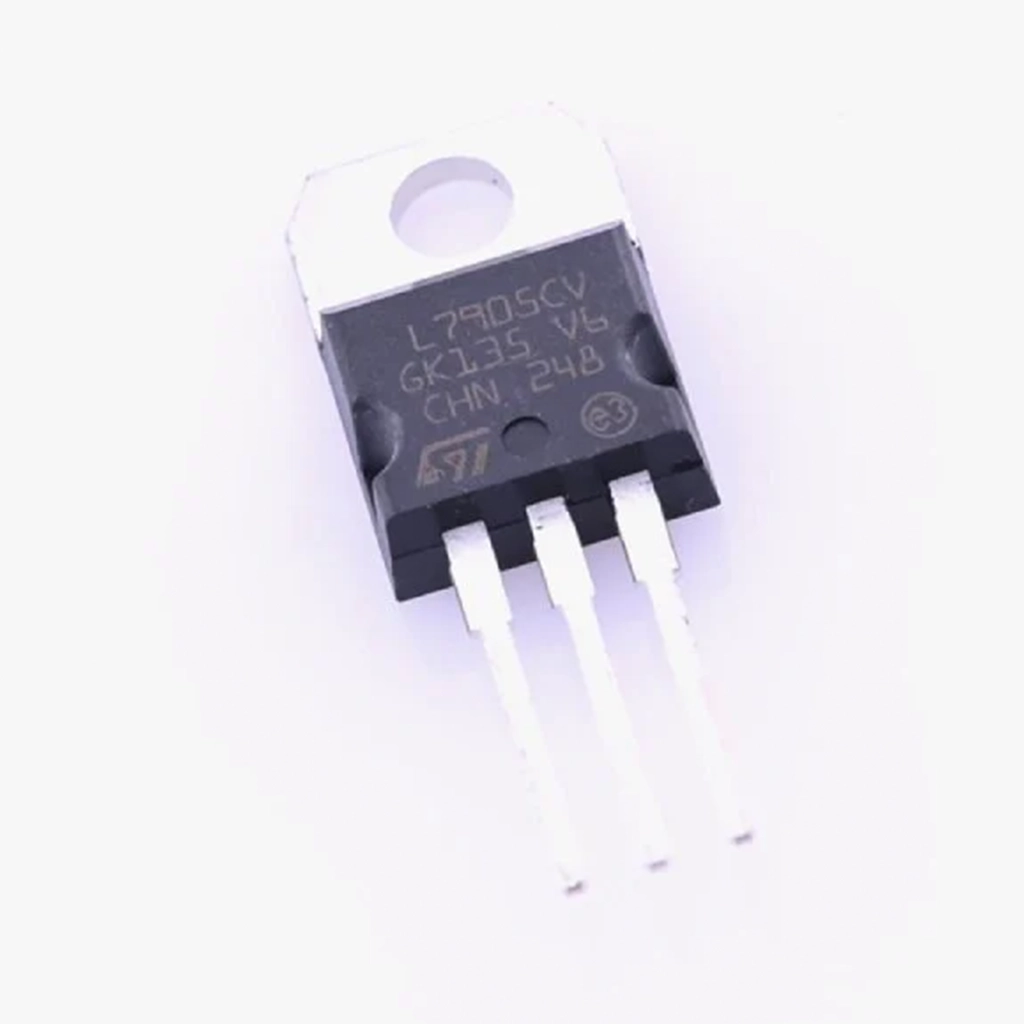

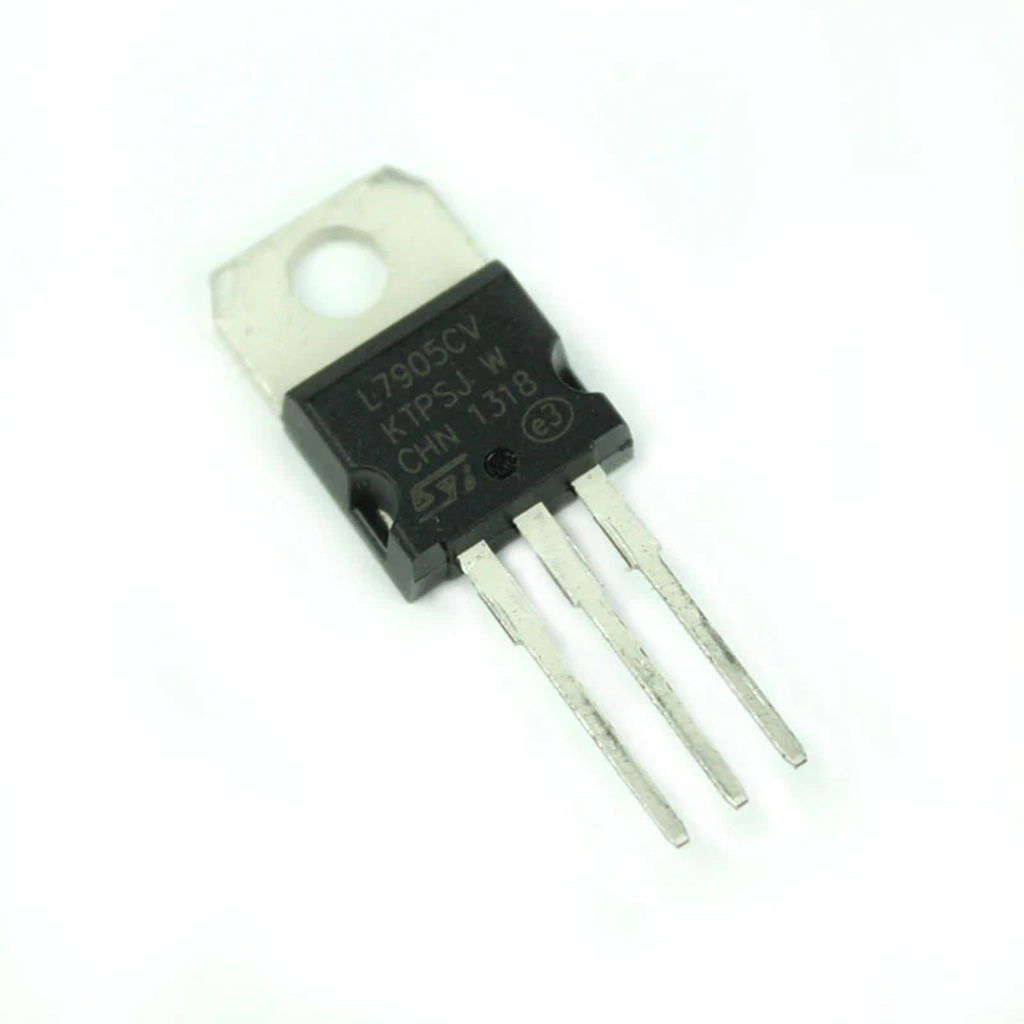

LM7905 IC is one of the most commonly used Negative Voltage Regulator in Electronic circuits to provide a regulated output of -5V. It has 3 terminals in TO-220 power package and it can handle upto 1.5A current. It dissipates the excess voltage in form of heat so you need to use a heat sink along with it to make sure it is working properly. LM7905 regulators employ internal current limiting safe area protection and thermal shutdown for protection against virtually all overload conditions. Low ground pin current of the LM7905 allows output voltage to be easily boosted above the preset value with a resistor divider. It is commonly used in Regulated power supply, as a current limiter in certain applications, constant -5V supply for OPAMP operation etc. If you want negative +5V Voltage Regulator check out LM7805 IC.
