Project – LM7809 – 9V Positive Voltage Regulator (To-220) (Pack of 1)
49%
Specifications
- 9V Positive Voltage Regulator
- Output Voltage: +9V
- Output Current: 1.5A
- Minimum Input Voltage is 11V
- Maximum Input Voltage is 35V
- Operating current(IQ) is 5mA
- Internal Thermal Overload and Short circuit current limiting protection is available.
- Junction Temperature maximum 125 degree Celsius
- Available in TO-220 Power Package
₹39.00 Original price was: ₹39.00.₹20.00Current price is: ₹20.00.
In Stock
Discount per Quantity
| Quantity | 5 - 9 | 10 + |
|---|---|---|
| Discount | 5% | 10% |
| Price | ₹19.00 | ₹18.00 |
Add to Wishlist
Add to Wishlist
Report Abuse
Description

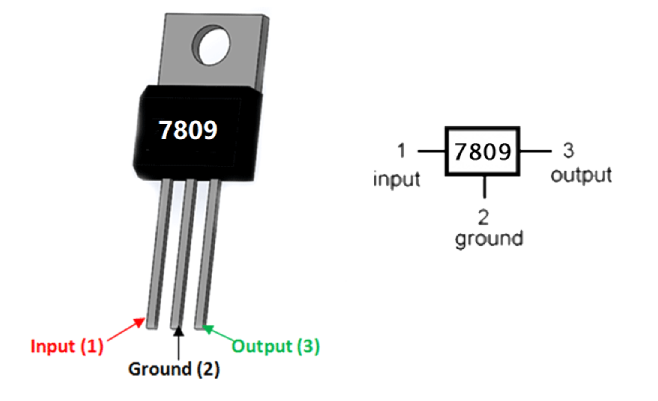

LM7809 is a three terminal positive voltage regulator to provide +9V regulated power supply. The LM7809 voltage regulator IC is available in TO-220 package. The 7809 IC, available in TO-220 package, have 3 pins, Pin 1 is a positive input, Pin 3 is a positive output and pin 2 is common ground between both input and output voltage.
