Project – 10K Ohm 103 Preset Potentiometer (POT)

Description

A potentiometer is a variable resistor with three terminals, where Two terminals are connected to a resistive element and the third terminal is connected to an adjustable round wiper. The position of the wiper determines the output voltage.

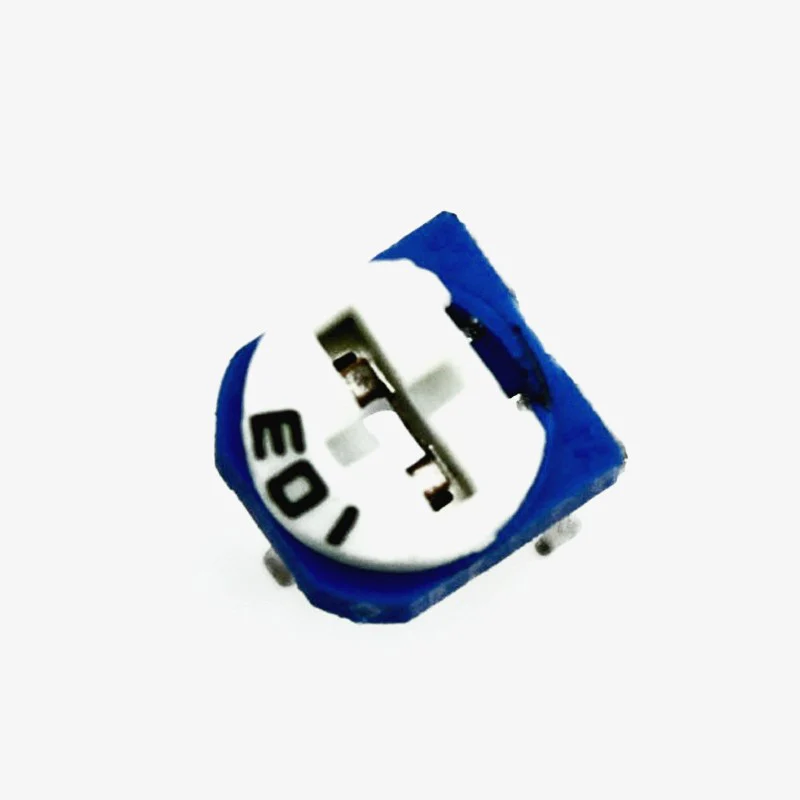

This 10K ohm compact linear Potentiometer with plastic dust-cap is suitable for bread board as well as PCB. This is center tap type so two pins will measure full 10K resistance and on third pin resistance will vary in accordance to rotation. A small flat screw driver is used for changing the value.

Pin Description of Preset Potentiometer is shown below

The two terminals of the Preset construct a fixed length resistor called a track. As the middle terminal is adjusted, it is moved along the track to give a variable potential that is a fraction of the fixed potential across the track.

Specifications of Preset Potentiometer

• Material Used : Plastic
• Linear type with a single turn
• Compact size
• Value:- 0- 10K
• Resistance Tolerance:- ±10%
• Rotation angel:- 210 ±20 °
• Rotational Life Cycle:- 200 cycles
• Temperature range : – -55 to +125 °C

Dimensions of the Preset Potentiometer
